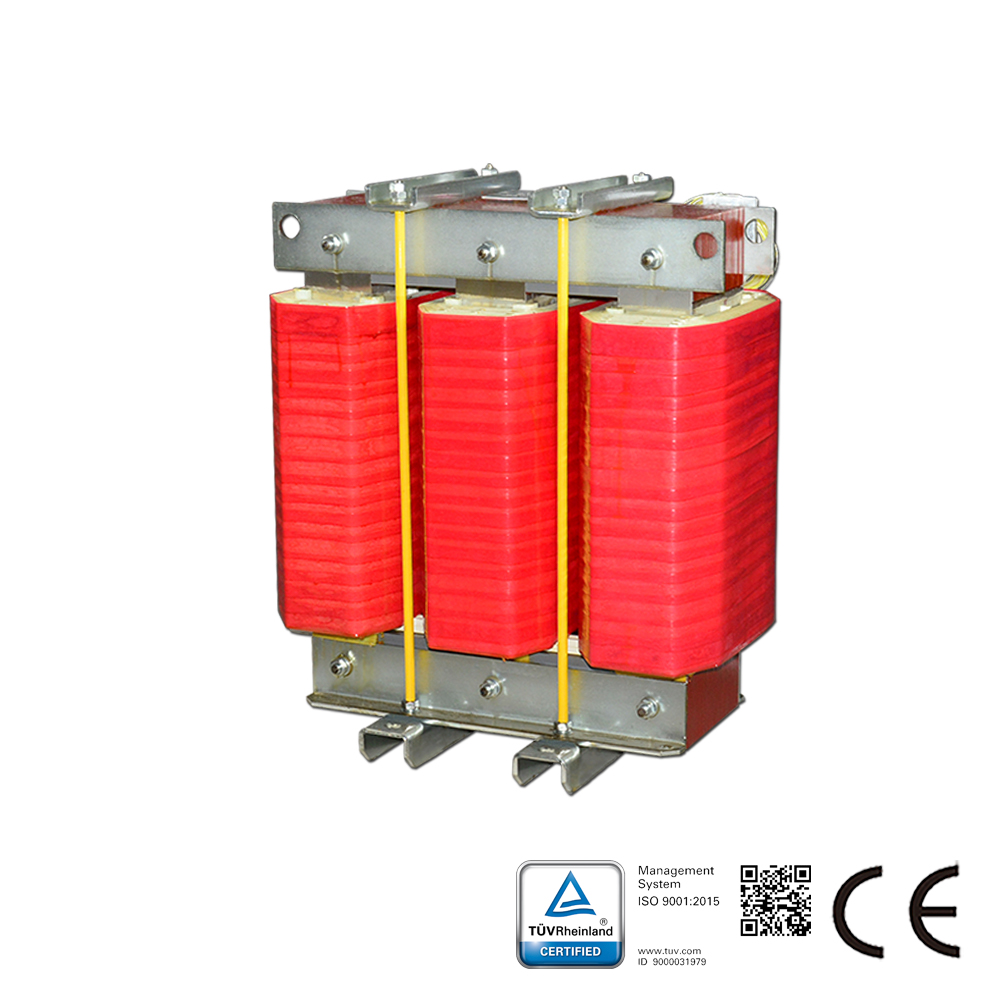

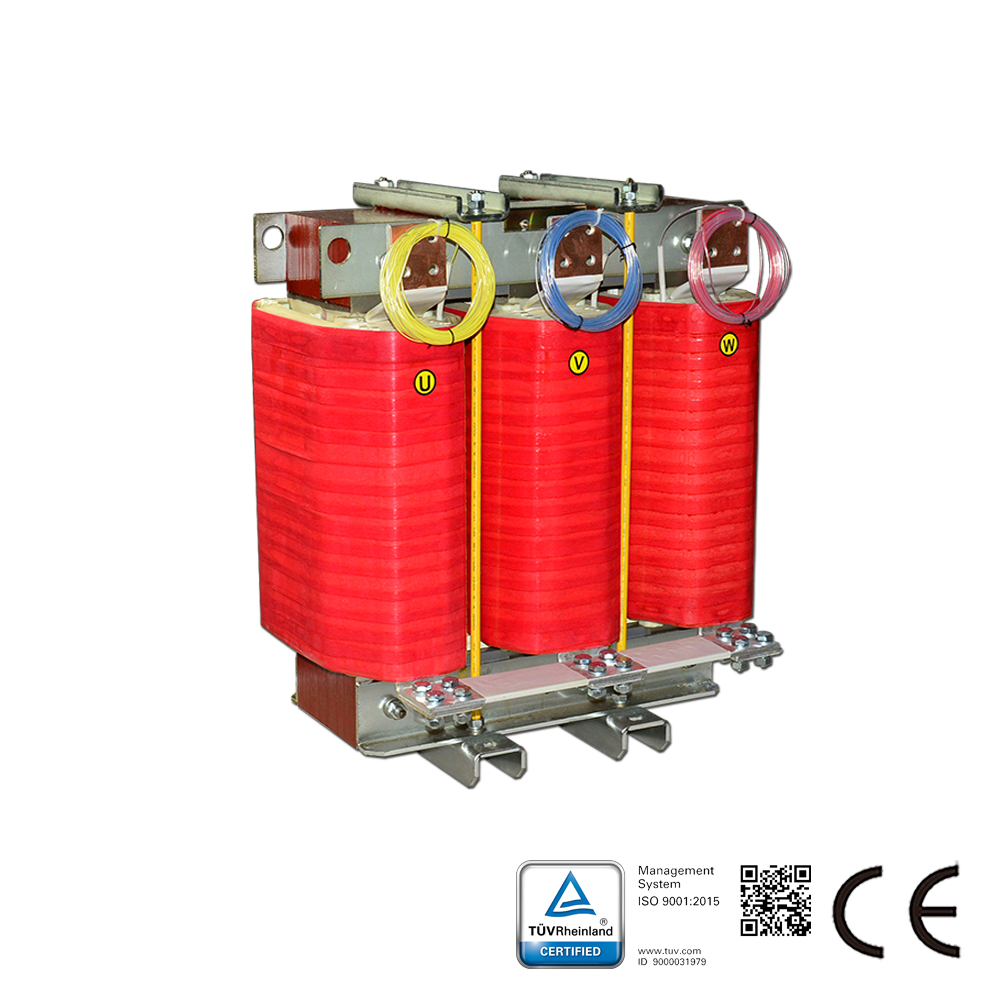

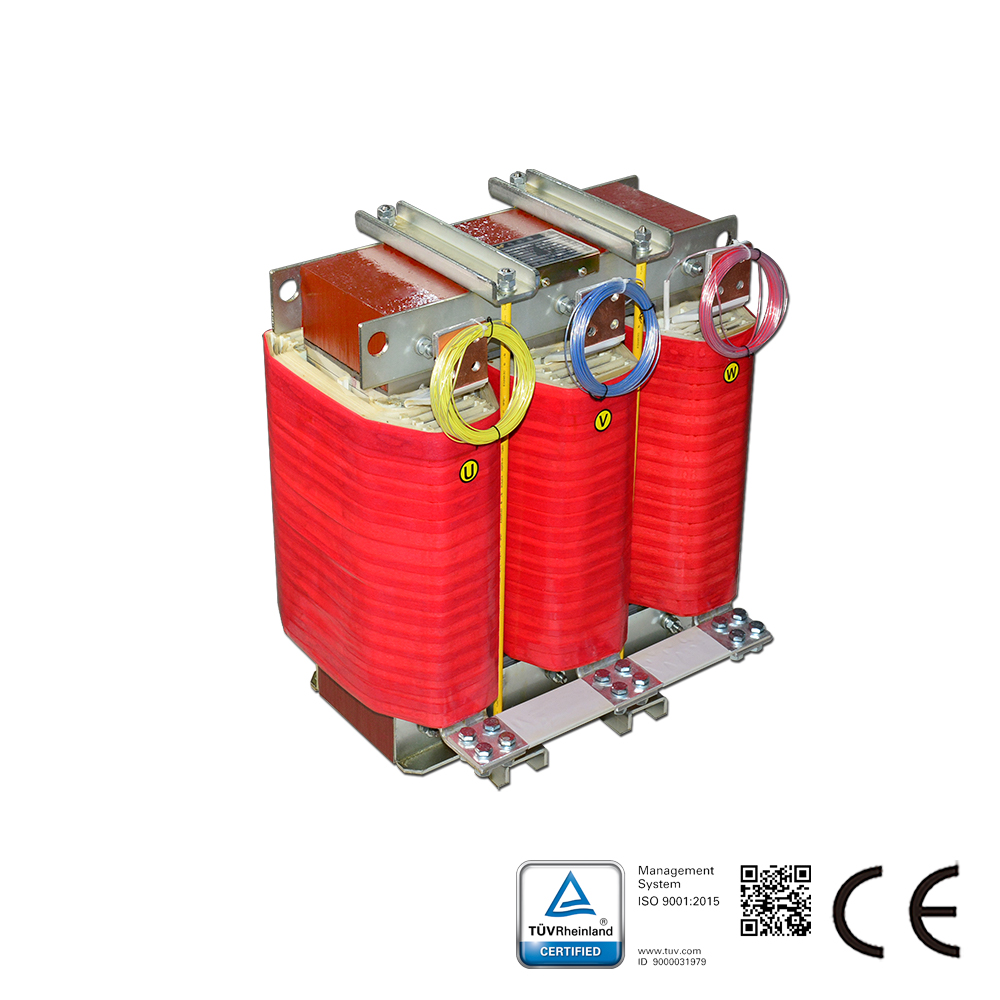

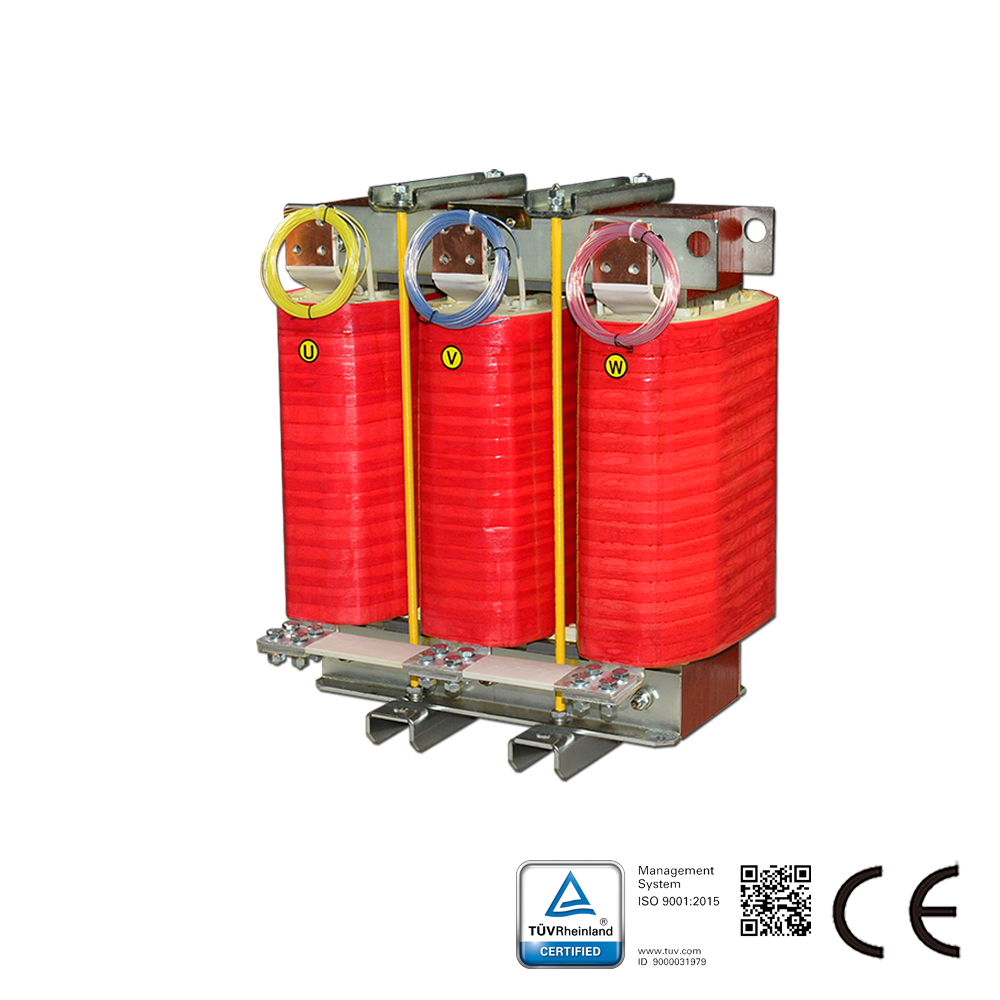

Description of Load Reactor：

Sikes load reactor successfully installed and operated in a large electric vehicle test center in China for testing the EV motor drives.

sikes high-precision load reactor was successfully installed and operated in a large electric vehicle test center in China. They are mainly used to test various performance parameters of EV motor drives.One or more high-precision load reactors work to be as an inductive load bank to simulate  a combined electric vehicle. This purely inductive load saves a lot of energy for long-term continuous testing.

Load bank parameters:
Circle time: 300s
600A for 270s
900A for 30s
1200A Unsaturated

Chracteristics:
1. Capacity: 42.1kvar;
2. Working frequency: 500Hz
3. Voltage range: 380V;
4. Insulation class: F / H;
5. Load features: Inductive load;
6. Ambient temperature: -10 ° C to +50 ° C;
7. Altitude: ≤3000m.
8. Weight：255kg
