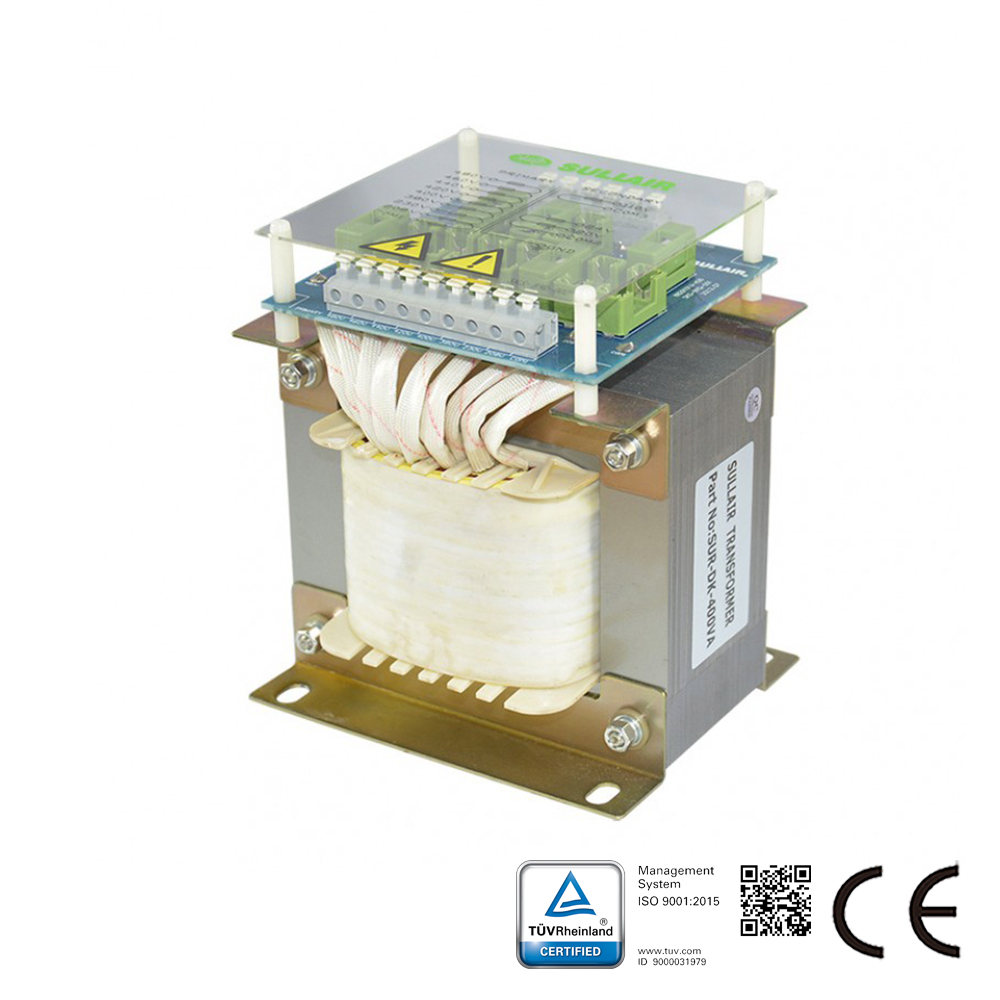

Industrial Control Transformers provide stepped-down voltages to machine tool control devices and meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used.

Characteristic of this series:
1.Power range: ≤15KVA.
2.Phase: single phase
3.Primary voltage: 480V/460V/440V/420V/415V/400V/380V/230V/208V/110V
4.Secondary voltage: 20V/24V/25V/110V/220V/380V
5.Frequency: 50/60Hz
6.Connection: Screw faston terminals
7.Fixing system: Angles DIN 41307
8.Winding: Enamelled copper wire class F/H, separated primary and secondary(galvanic separation)
9.Protection class: IP00 or as customer required.
10.Insulation class: F/H
11.Standard: According to EN61558-2-6
